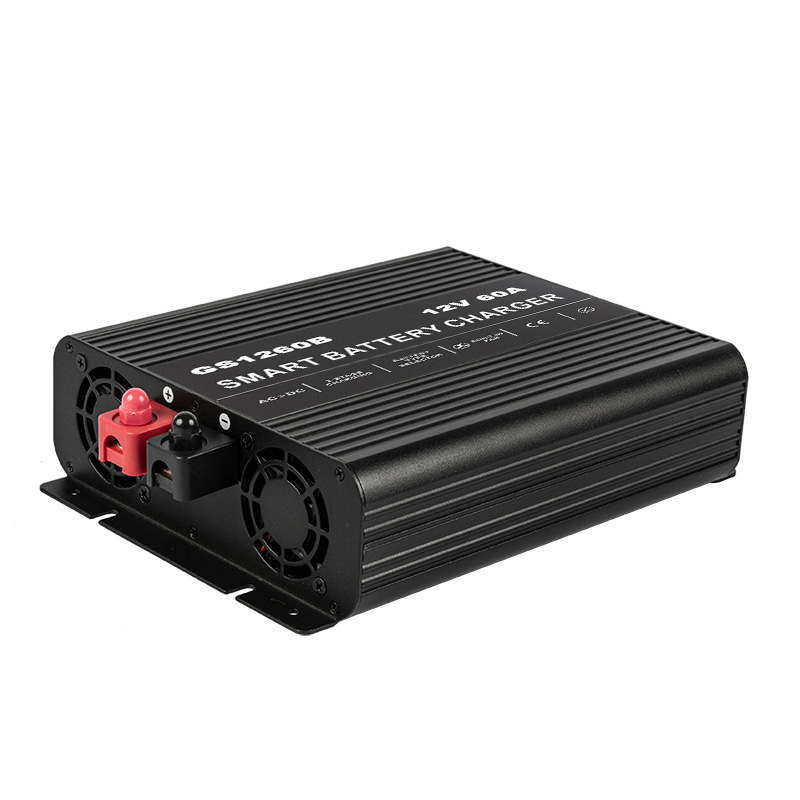

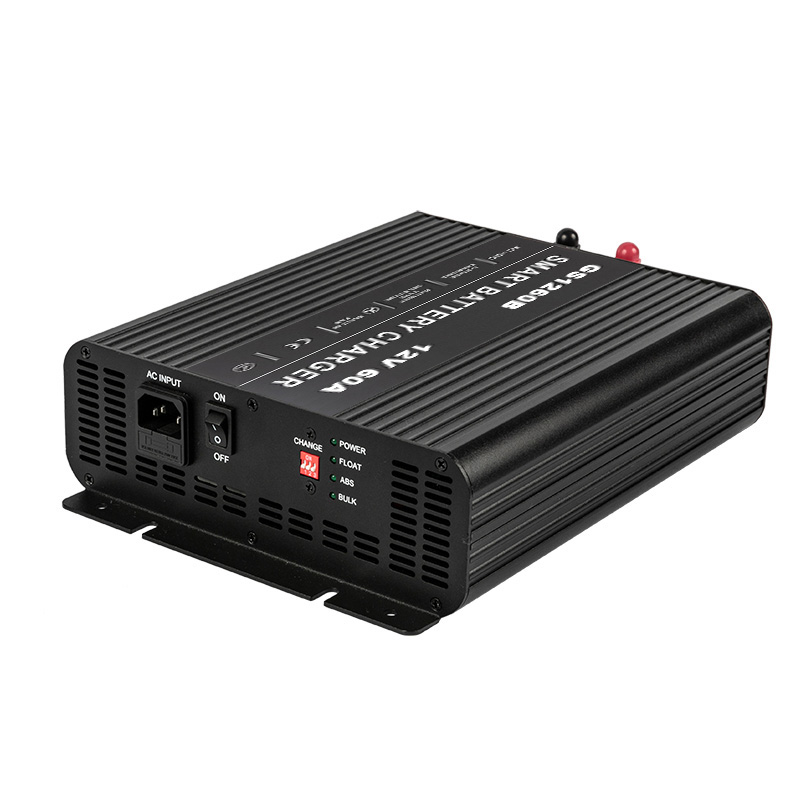

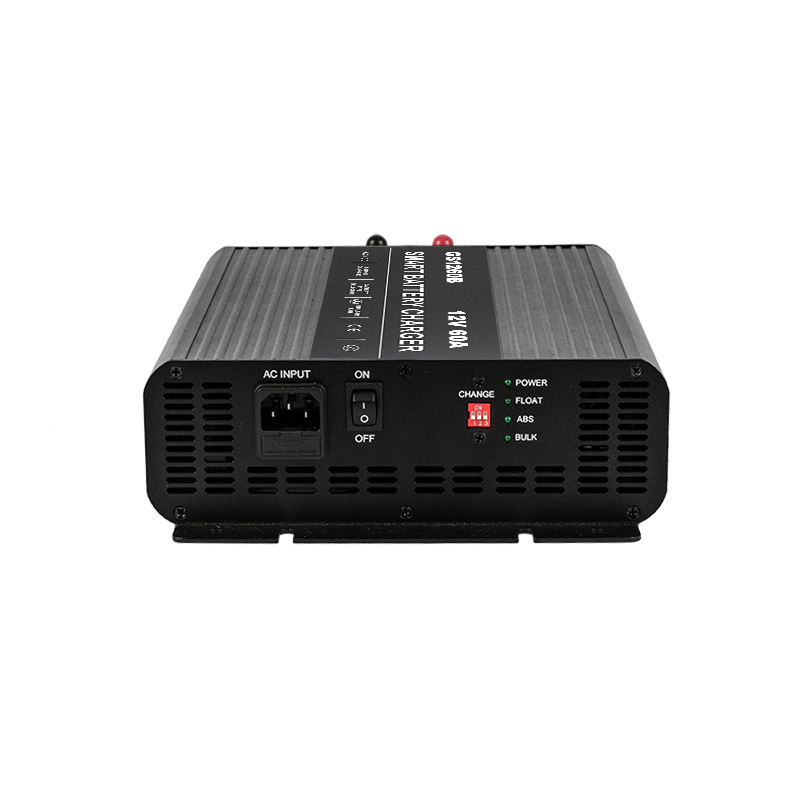

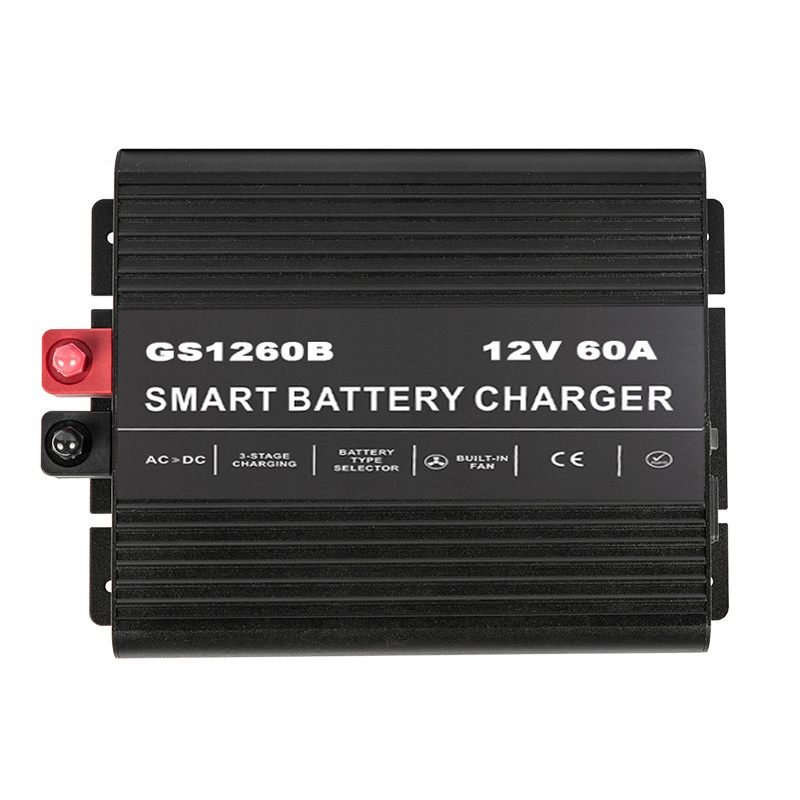

New design AC to DC 12V 60A battery charger is provided by the professional manufacture of KOSUN factory,it has built over 10 years.The hot sale smart charger 60A produce with matured technology and control by the perfect system for reliable quality battery charger.
OEM good quality 12V 60A battery charger produce with advanced equipment:SMD,wave soldering,reflow soldering,AOI,spray paint and the lab test machine:vibration test facility,high & low temperature alternating test device,salty spray test machine for the high quality and high efficiency chargers.The chargers set with variety protections:over charging protection,short circuit protection,high temperature protection,reverse polarity connect protection.
Product parameter(Specification) of the 12V 60A battery charger
|
New Series Battery Charger |
||||||||||||
|
★★★★★ Highly recommended products |
||||||||||||
|
|
■ LED indicator light show charging states; |
|||||||||||
|
SPECIFICATION |
||||||||||||
|
MODEL |
GS1210B |
GS1220B |
GS1230B |
GS1240B |
GS1280 |
GS2410B |
GS2420B |
GS2440B |
GS4805B |
GS4810B |
GS4820B |
GS3625B |
|
Input voltage |
AC 110V(90-120V)/AC 220V(189V-240V) |
|||||||||||
|
Output voltage |
DC 12V |
DC 24V |
DC 48V |
DC 36V |
||||||||
|
Max charing current |
10A |
20A |
30A |
40A |
80A |
10A |
20A |
40A |
5A |
10A |
20A |
25A |
|
Output frequency |
47~63HZ |
|||||||||||
|
Charging way |
Automatic 3 stage charging |
|||||||||||
|
Stage 1:bulk charge; Stage 2:absorption charge; Stage 3:float charge |
||||||||||||
|
Float charge voltage |
13.8V |
27.6V |
|
55.2V |
41.4 |
|||||||
|
Absorption charge voltage |
14.2V(G); 14.4V(S); 14.6V(F/Li) |
28.4V(G); 28.8V(S); 29.2V(F/Li) |
|
56.8V(G); 57.6V(S); 58.4V(F/Li) |
42.6V(G);43.2V(S); |
|||||||
|
Efficiency |
>85% |
|||||||||||
|
Protection function |
Reverse polarity;output short circuit;over temperature;over voltage;over load;over current |
|||||||||||
|
LED indicator |
5 LED indicators for different charge status |
|||||||||||
|
Product dimension(CM) |
13*15*5 |
16*15*7 |
26*15*7 |
26*15*7 |
25*22*7.5 |
16*15*5 |
26*15*7 |
25*22*7.5 |
16*15*7 |
26*15*7 |
25*22*7.5 |
25*22*7.5 |
|
Product net weight |
0.75KG |
0.85KG |
2.1KG |
2.2KG |
3.9KG |
2.1KG |
2.2KG |
3.64KG |
0.85KG |
2.2KG |
3.58KG |
3.9KG |
|
Certification |
CE-EMC/LVD,RoHS |
|||||||||||
|
Case color |
Optional(black/orange/yello/green/gray/red ect.),factory default color is blue |
|||||||||||
|
Packing |
Poly bag+EPE+inner box+carton 1pc/inner box |
|||||||||||
|
12PCS/CTN |
5PCS/CTN |
6PCS/CTN |
6PCS/CTN |
2PCS/CTN |
2PCS/CTN |
6PCS/CTN |
2PCS/CTN |
5PCS/CTN |
6PCS/CTN |
2PCS/CTN |
2PCS/CTN |
|
|
Replaceable fuse+instruction book+connection wire |
||||||||||||
|
CTN dimension(CM) |
54*42*30 |
32*45*38 |
42*42*46 |
42*42*46 |
43*31*36 |
32*45*38 |
42*42*46 |
43*31*36 |
32*45*38 |
42*42*46 |
43*30*36 |
43*31*36 |
|
N.W./G.W./CTN(KG) |
16.5/17.5 |
4.5/6.5 |
12.6/17.3 |
13.2/17.9 |
8.7/9.7 |
7.0/10.5 |
13.2/17.9 |
8.52/9.21 |
4.5/6.5 |
13.2/16.39 |
8.61/9.21 |
8.52/9.11 |
Product feature and application of the 12V 60A battery charger
①. LED indicator light show charging status.
②. Temperature controlled cooling fan;
③. 3-stage battery charging:bulk charge,absorption charge,float charge
④. Reverse polarity protection:connect to battery,no harm;not connect to battery,no output.
⑤. Short circuit protection
⑥. Over temperature protection
⑦. Battery type selector
Deliver,Shipping And Serving of the smart charger
It is a flexible transportation for the battery charger to clients such as express/train/ocean/air etc which could meet different customers choice.The factory manage the materials in advance after confirming the order,and then,produce the cargoes which save more time for the whole process.Chargers pack with customized color box or neutral packages according to the customer demands.
FAQ
A. What character of your company?
KOSUN are one of professional manufacture with two factories built in 2011 which equip with advanced auto-machine and modern assembly line for the standard process of produce,the products are more stable for the long time operation.The main products include pure sine wave inverter,inverter with charger,modified sine wave inverter,battery charger and power station etc,thus,welcome to negotiate with us for more information you want.
B. Do you accept OEM produce?
Yes,of course. We would like to provide you the OEM,ODM produce for popular market which will improve the market share on your region.
C. Whether you accept small order?
Yes,small trial order is welcomed,contact with us for more information you want,we are glad to offer you satisfied service;
D. How about the warranty?
Warranty is 18 months for all goods.
The advantages to choose our team:
1. Our sales staff has extensive sales experience through continuous training and practice which they have the ability to efficiency cooperate development between company and clients and provide satisfied service to customers;
2. The company buy modern equipment for automated production line;
3. Training professional technical staff is essential process to improve the quality of produce;
4. Meeting before order production determine relative details to reduce error output;
5. Strict quality control(incoming inspection/semi-finished product inspection/finished product test/several times full test on-line/sampling test before shipment);
6. OEM/ODM accept by workshop;
7. Good after-sales service for long-term development.
