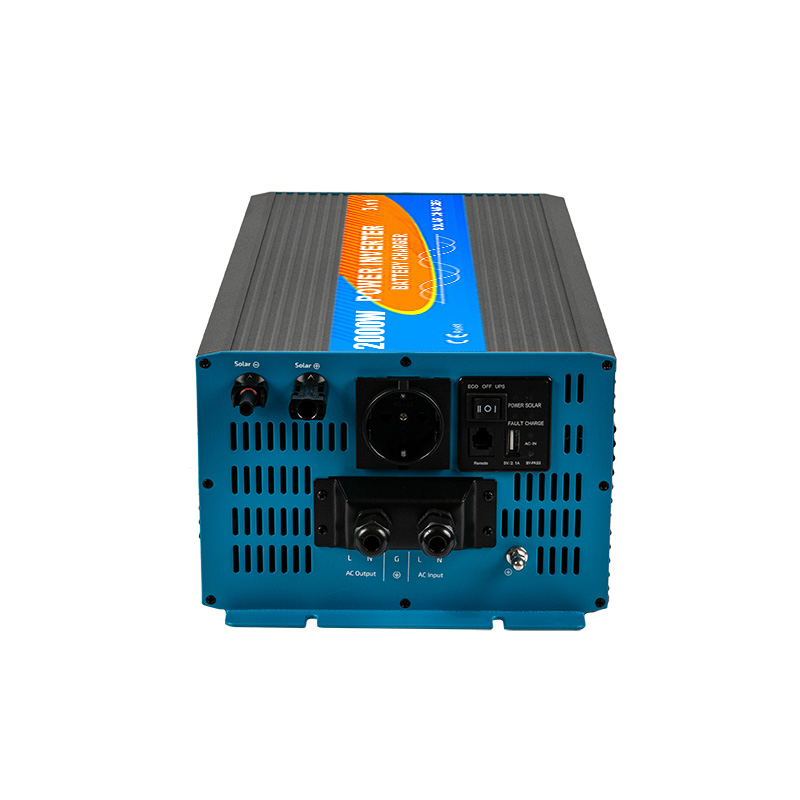

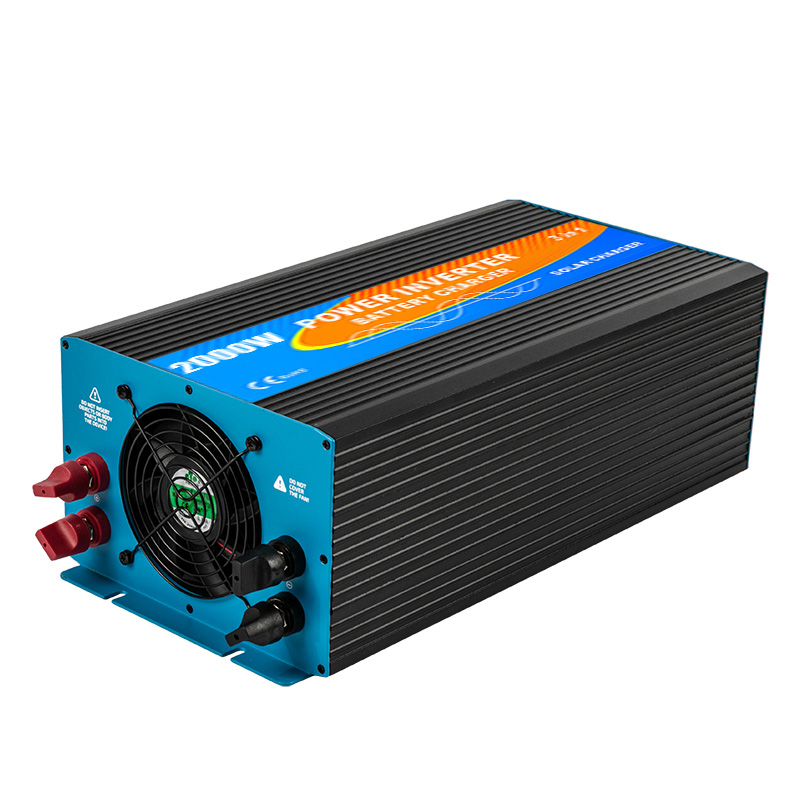

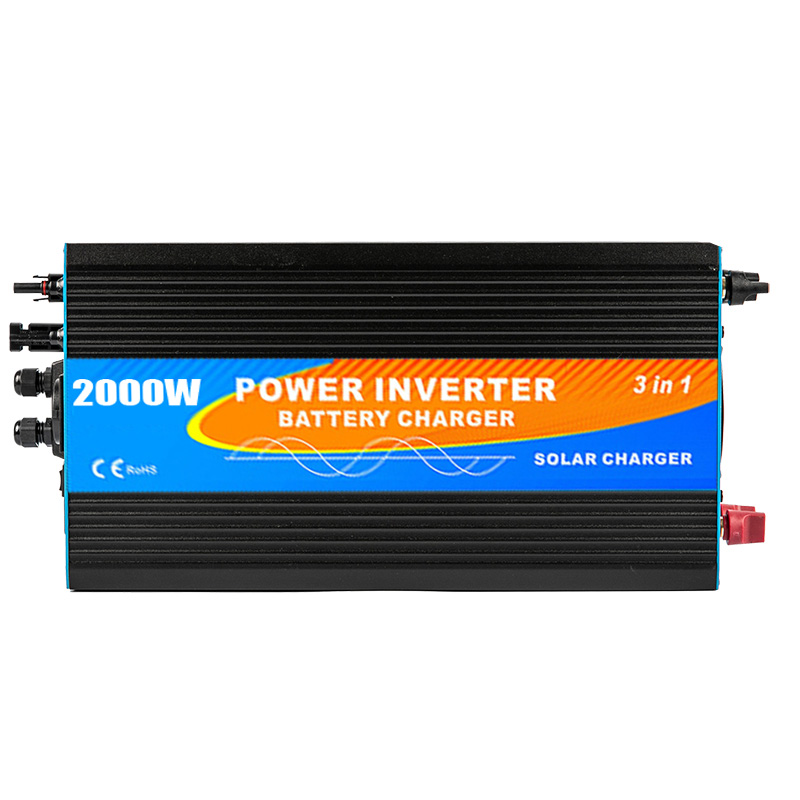

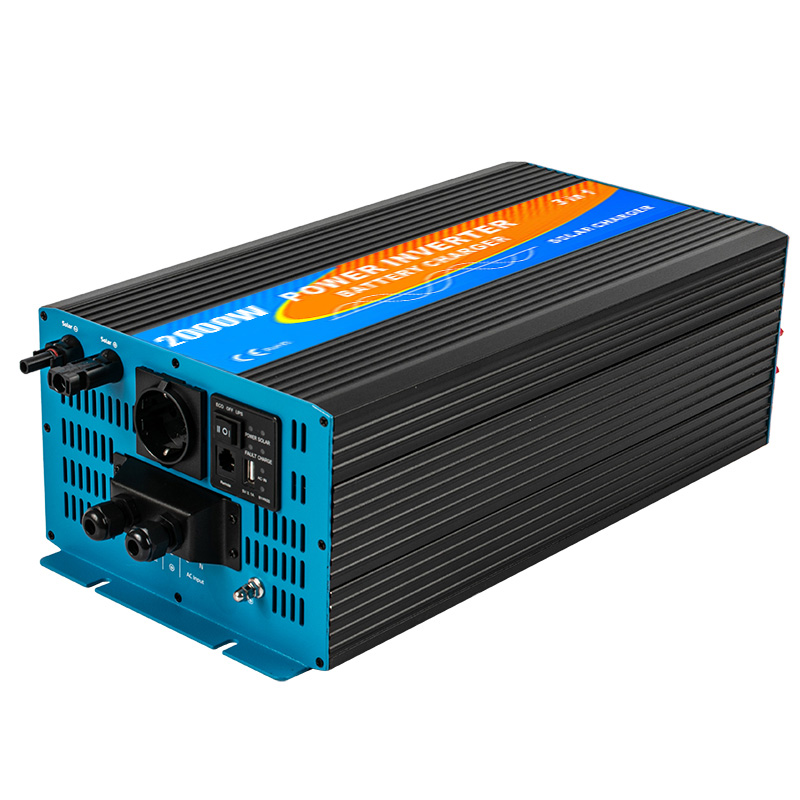

KOSUN 2000w MPPT inverter design the inverter,battery charger,solar controller integrated together for the solar power system,it is easy to operate with solar panels,using the green solar power could save more energy,then,the battery discharge to load appliances for continue operation when the solar power cut off;the AC main transfer to the working if the battery fully discharge which keep the equipment regular operation.
Singph phase solar power inverter & converter KOSUN 2000W MPPT inverter,the hybrid pure sine wave invert design with ECO/UPS mode for the appliances such as cars/vans/boats/hospital inspection machine/outside leisure/camping etc.The ECO mode of 2000w MPPT inverter is from solar power charge to the battery and load equipment in the daylight,the battery immediately discharge the power to keep appliances uninterrupted operating if the solar down.The movable and portable advantages makes the 2000W MPPT inverter more attractive on the market.All the inverters pass the strict process of produce and test inspection by the SMD,wave soldering,reflow soldering,AOI,spray paint.The inverters must pass the strict test before packing such as vibration test,high & low temperature alternating test,salty spray test,we also do the test report before shipment which confirm more accurate orders to the customers.
Product parameter(Specification) of the 2000w MPPT solar power inverter
|
Pure Sine Wave Inverter With MPPT Function |
|||||||
|
|
■ Pure sine wave output(THD<3%); |
||||||
|
MODEL |
|
KSC2000PPT |
KSC2000PPT |
KSC2000PPT |
KSC2000PPT |
KSC2000PPT |
KSC2000PPT |
|
INVERTER |
RATED PPOWER |
2000W |
|||||
|
SURGE POWER |
4000W |
||||||
|
AC VOLTAGE |
110V |
230V |
|||||
|
FREQUENCY |
60±1Hz |
50±1Hz |
|||||
|
WAVEFORM |
Pure sine wave inverter (THD<5%) |
||||||
|
AC REGULATION |
10% |
||||||
|
BAT.VOLTAGE |
12V |
24V |
48V |
12V |
24V |
48V |
|
|
VOLTAGE RANGE |
10.5-15V |
21-30V |
42-60V |
10.5-15V |
21-30V |
42-60V |
|
|
NO LOAD CURRENT DRAW |
0.65A |
0.32A |
0.16A |
0.65A |
0.32A |
0.16A |
|
|
EFFICIENCY |
87% |
88% |
89% |
88% |
89% |
90% |
|
|
AC CHARGER |
CHAGER CURRENT |
15A |
8A |
4A |
15A |
8A |
4A |
|
INPUT VOLTAGE RANGE |
80-130VAC |
170-260VAC |
|||||
|
OUTPUT VOLTAGE |
12V |
24V |
48V |
12V |
24V |
48V |
|
|
MPPT SOLAR CHARGER |
MPPT CHARGER EFFICIENCY |
97% |
97% |
||||
|
INPUT VOLTAGE RANGE |
15-70V |
24-70V |
48-70V |
15-70V |
24-70V |
48-70V |
|
|
OUTPUT VOLTAGE |
12V |
24V |
48V |
12V |
24V |
48V |
|
|
SOLAR CHARGER CURRENT |
20A Max |
||||||
|
PROTECTIONS |
BAT.LOW ALARM(VDC) |
10.8+02 |
21.6+0.4 |
43.2+0.8 |
10.8+02 |
21.6+0.4 |
43.2+0.8 |
|
BAT.LOW SHUTDOWN |
10.2+02 |
20.4+0.4 |
40.8+0.8 |
10.2+02 |
20.4+0.4 |
40.8+0.8 |
|
|
BAT.OVER SHUTDOWN |
15.5+0.2 |
31+0.4 |
62+0.8 |
15.5+0.2 |
31+0.4 |
62+0.8 |
|
|
BAT.REVERSE POLARITY |
FUSE |
||||||
|
OUTPUT PROTECTION |
OVER TEMPERATURE |
≥45ºC or ≥60% rated power, cooling fan open;≥70ºC,Shut off. |
|||||
|
Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor |
|||||||
|
OUTPUT SHORT |
Protection type:Shut down o/p voltage;re-power on to recover |
||||||
|
OVER LOAD |
100%-120% rated load for 10 sec. |
||||||
|
Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor |
|||||||
|
ENVIRONMENT |
WORKING TEMP. |
-15℃～+40℃@100% load;60℃ @50% load |
|||||
|
WORKING HUMIDITY |
20%90% RH non-condensing |
||||||
|
STORAGE TEMP. |
-30℃～+70℃/-22℉～+158℉ |
||||||
|
STORAGE HUMIDITY |
10%95% RH non-condensing |
||||||
|
SAFETY |
CE |
Compliance to EN55032 |
|||||
|
LVD |
Compliance to EN60950-1 |
||||||
|
ROHS |
Compliance to EN50581 |
||||||
|
E-MARK |
E13 |
||||||
|
OTHERS |
ISO9001/IATF16949/BSCI |
||||||
|
UL test |
B08H52NN2M/ B08H54PCDT/ B08H4TMTJC/ B08H51DTM8 |
||||||
|
REACH |
No.:1907/2006 |
||||||
|
certificate of registration |
IATF 16949:2016 |
111458/A/0001/SM/En |
|||||
|
OTHERS |
USB port |
5V/2.1A |
|||||
|
DIMENSION L*W*H (mm) |
410*220*150 |
||||||
|
PACKING(cm) |
55*35*26,1PC/CTN,10.3KGS |
||||||
Product feature and application of the 2000w MPPT solar power inverter
①. Optional UPS or Energy saving mode(ECO);
②. Pure sine wave output(THD<0.4%);
③. High efficiency up to 90%;
④. Complete LED indication for operating status;
⑤. Full digital controlled;
⑥. Solar charging current max 20A;
⑦. AC battery charger current max 20A;
⑧. Fast transfer time 16ms;
⑨. 3-step charge wary;
⑩. MPPT solar charger;
⑪. 15 month global warranty.
Deliver,Shipping And Serving of the 2000w MPPT solar power inverter
It is a flexible transportation for the power inverter to clients such as express/train/ocean/air etc which could meet different customers choice.The factory manage the materials in advance after confirming the order,and then,produce the cargoes which save more time for the whole process.inverter pack with customized color box or neutral packages according to the customer demands.
FAQ
A. What character of your company?
KOSUN are one of professional manufacture with two factories built in 2011 which equip with advanced auto-machine and modern assembly line for the standard process of produce,the products are more stable for the long time operation.The main products include pure sine wave inverter,inverter with charger,modified sine wave inverter,battery charger and power station etc,thus,welcome to negotiate with us for more information you want.
B. Do you accept OEM produce?
Yes,of course. We would like to provide you the OEM,ODM produce for popular market which will improve the market share on your region.
C. Whether you accept small order?
Yes,small trial order is welcomed,contact with us for more information you want,we are glad to offer you satisfied service;
D. How about the warranty?
Warranty is 18 months for all goods.
The advantages to choose our team:
1. Our sales staff has extensive sales experience through continuous training and practice which they have the ability to efficiency cooperate development between company and clients and provide satisfied service to customers;
2. The company buy modern equipment for automated production line;
3. Training professional technical staff is essential process to improve the quality of produce;
4. Meeting before order production determine relative details to reduce error output;
5. Strict quality control(incoming inspection/semi-finished product inspection/finished product test/several times full test on-line/sampling test before shipment);
6. OEM/ODM accept by workshop;
7. Good after-sales service for long-term development.
