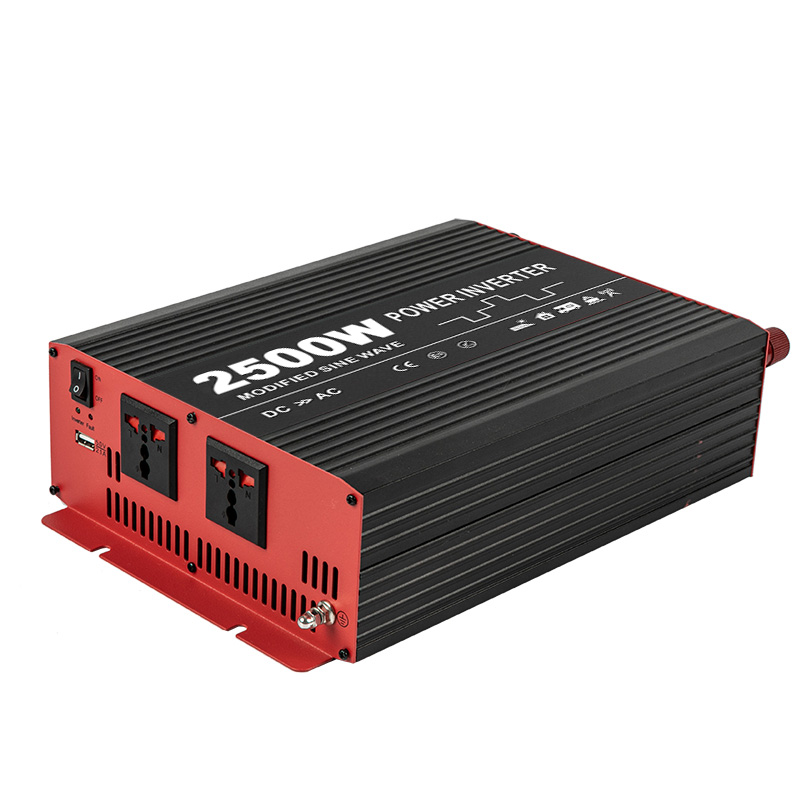

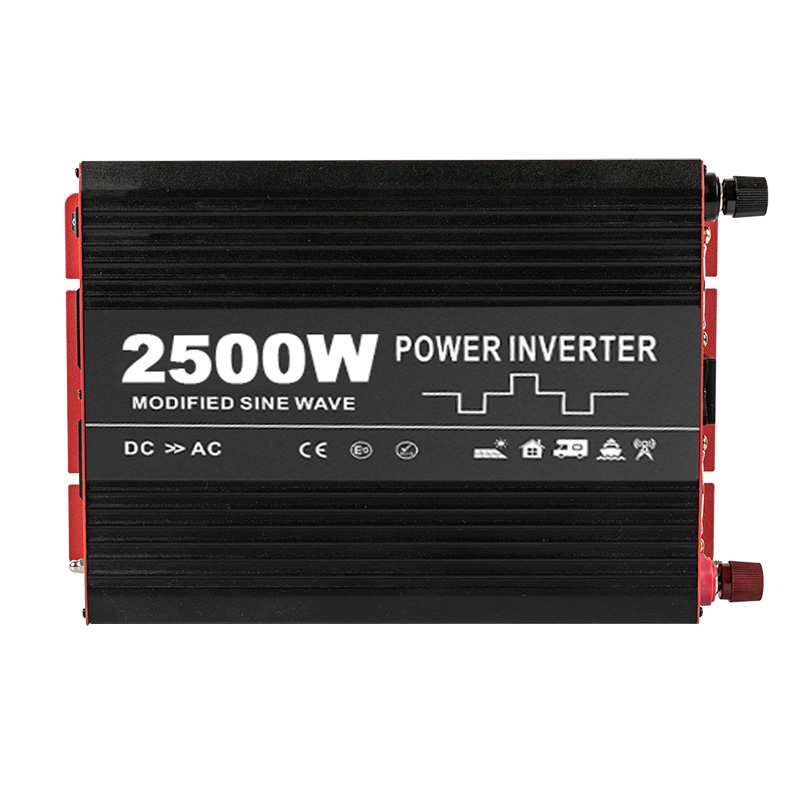

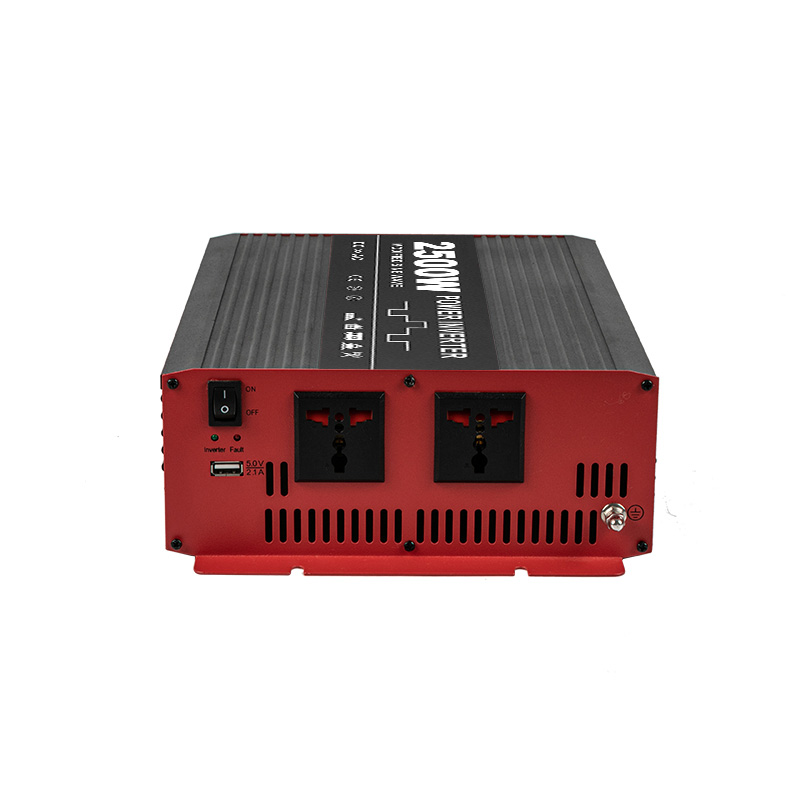

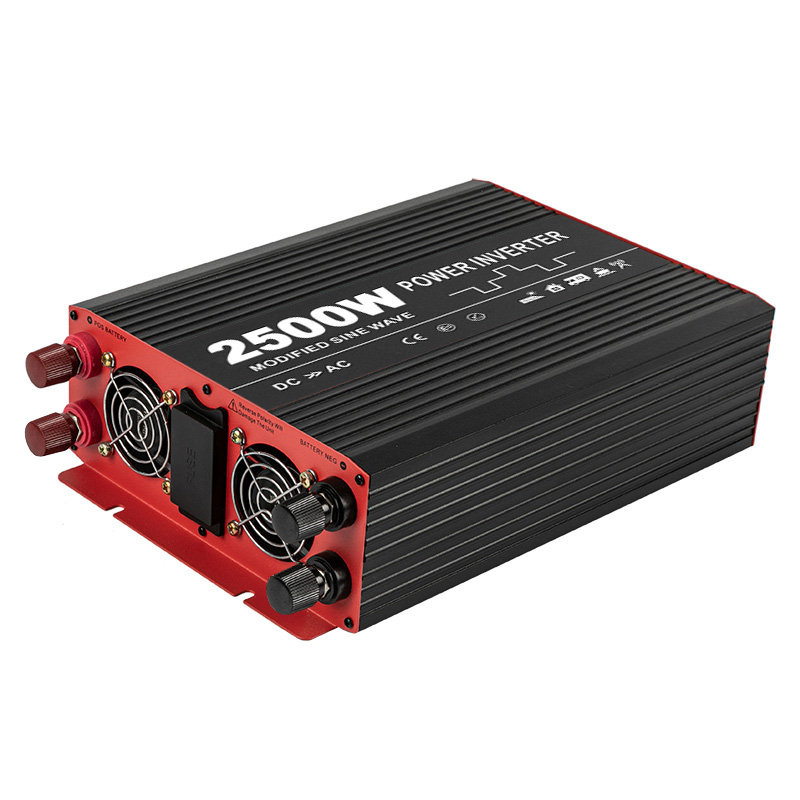

Hot sale modified sine wave inversor 2500w power inverter provide mobile power at a reasonable factory quotation and high performance for the AC output and USB port 5V/2.1A.The 2500w converter is engineered to the fuse built-out which is very good design as you can very easy to change the fuse outside the inverter if your inverter fuse was blown.
Real loading 2500w power inverter design with 5000w peak power with soft start function,high performance for various types:cars,electronic vehicles,boat,light,fans. Reliable quality inverters are popular on the global market for green energy and portable power.he inverters must pass the standard process of produce with strict test and related lab test such as vibration test,low & high temperature alternating test,salty spray test and Hi-Pot Test for safety operation.
Product parameter(Specification) of the 2500w power inverter
|
Modified Sine Wave Inverter |
|||||||
|
|
■ Modified sine wave output; |
||||||
|
MODEL |
|
KS2500M-112 |
KS2500M-124 |
KS2500M-148 |
KS2500M-212 |
KS2500M-224 |
KS2500M-248 |
|
OUTPUT |
RATED POWER |
2500W |
|||||
|
SURGE POWER |
5000W |
||||||
|
AC VOLTAGE |
Factory setting set at 100V/110V/120V AC |
Factory setting set at 220V/230V/240V AC |
|||||
|
FREQUENCY |
50Hz/60Hz optional |
||||||
|
WAVE FORM |
Modified sine wave |
||||||
|
AC REGULATION |
±10% |
||||||
|
STANDARD RECEPTACLES |
Schuko/UK/Australia/Universal/USA/France/JP/Brazile |
||||||
|
FRONT PANEL INDICATOR |
Operation and fault status |
||||||
|
INPUT |
BAT.VOLTAGE |
12V |
24V |
48V |
12v |
24V |
48V |
|
VOLTAGE RANGE |
9.7-16.4VDC |
19.4-32.8VDC |
38.8-65.6VDC |
9.7-16.4VDC |
19.4-32.8VDC |
38.8-65.6VDC |
|
|
DC CURRENT |
300A |
150A |
75A |
300A |
150A |
75A |
|
|
NO LOAD CURRENT DRAW |
<0.9A |
<0.78A |
<0.69A |
<0.9A |
<0.78A |
<0.69A |
|
|
EFFICIENCY |
89% |
>90% |
92% |
88% |
90% |
91%% |
|
|
BATTERY TYPES |
Recommend use Open & sealed lead acid battery |
||||||
|
BATTERY INPUT PROTECTION |
BAT.LOW ALARM |
10.8±0.3V |
21.6±0.6V |
43.2±1.2V |
10.8±0.3V |
21.6±0.6V |
43.2±1.2V |
|
BAT.LOW SHUTDOWN |
10±0.3V |
20±0.6V |
40±1.2V |
10±0.3V |
20±0.6V |
40±1.2V |
|
|
BAT.OVER SHUTDOWN |
16±0.4V |
32±0.8V |
64±1.6V |
16±0.4V |
32±0.8V |
64±1.6V |
|
|
REVERSE POLARITY |
yes |
||||||
|
OUTPUT PROTECTION |
OVER TEMPERATURE |
≥45ºC or ≥60% rated power, cooling fan open;≥70ºC,Shut off. |
|||||
|
Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor |
|||||||
|
OUTPUT SHORT |
Protection type:Shut down o/p voltage;re-power on to recover |
||||||
|
OVER LOAD |
100%-120% rated load for 10 sec. |
||||||
|
Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor |
|||||||
|
ENVIRONMENT |
WORKING TEMP. |
-15℃～+40℃@100% load;60℃ @50% load |
|||||
|
WORKING HUMIDITY |
20%90% RH non-condensing |
||||||
|
STORAGE TEMP. |
-30℃～+70℃/-22℉～+158℉ |
||||||
|
STORAGE HUMIDITY |
10%95% RH non-condensing |
||||||
|
SAFETY |
CE |
Compliance to EN55032 |
|||||
|
LVD |
Compliance to EN60950-1 |
||||||
|
ROHS |
Compliance to EN50581 |
||||||
|
E-MARK |
E13 |
||||||
|
OTHERS |
ISO9001/IATF16949/BSCI |
||||||
|
UL test |
B08H52NN2M/ B08H54PCDT/ B08H4TMTJC/ B08H51DTM8 |
||||||
|
REACH |
No.:1907/2006 |
||||||
|
certificate of registration |
IATF 16949:2016 |
111458/A/0001/SM/En |
|||||
|
OTHERS |
USB port |
5V/2.1A |
|||||
|
DIMENSION L*W*H (mm) |
320*220*90 |
||||||
|
PACKING(cm) |
45.5*30.5*36 ;2pcs/CTN,12.8KG |
||||||
Product feature and application of the 2500w power inverter
①. Fuse:built-out;
②. USB:5V/2.1A;
③. Modified sine wave output;
④. High reliability and high efficiency;
⑤. High load ability;
⑥. Temperature Controlled Cooling Fan;
⑦. Protection:Overload.Short Circuit,Reverse Polarity,Over/Under Input Voltage,Over Temperature;
⑧. LED Indicator light indicate inverter,fault mode;
⑨. CE/RoHS/E-Mark/ISO9001 approved.
Product Qualification of the power inverter
A. CE Compliance to EN55032
B. RoHS Compliance to EN50581
C. LVD Compliance to EN60950-1
D. E-Mark E13
E. IATF 16969
F. REACH/UL/TUV report
Deliver,Shipping And Serving of the power inverter
It is a flexible transportation for the power inverter to clients such as express/train/ocean/air etc which could meet different customers choice.The factory manage the materials in advance after confirming the order,and then,produce the cargoes which save more time for the whole process.KOSUN inverter pack with customized color box or neutral packages according to the customer demands.
FAQ
A. What character of the manufacture?
KOSUN are one of professional manufacture with two factories built in 2011 which equip with advanced auto-machine and modern assembly line for the standard process of produce,the products are more stable for the long time operation.The main products include pure sine wave inverter,inverter with charger,modified sine wave inverter,battery charger and power station etc,thus,welcome to negotiate with us for more information you want.
B. Why your quotation is higher than other suppliers?
C. In domestic market, the high and low inverter brands are mixed together. There are many low-cost inverter is actually some assembled small unlicensed workshops, it crudely, to reduce costs and use of substandard components for assembly, there is a very big security risk! In order to protect the pro personal and property safety, please do not covet low price, be sure to choose a reliable inverter;
D. Is the output voltage of our inverter stable ?
E. Absolutely. Our inverter is designed with a good regulator circuit. You can even check it when measuring the true value by a multimeter. Actually the output voltage is quite stable;
F. What is a resistive load appliances?
G. Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescents, electric fans, video broadcast, small printers, electric mahjong machines, rice cookers etc. All belong to resistive loads. Our modified sine wave inverters can drive them successfully.
H. What is the inductive load appliances?
I. It refers to the application of electromagnetic induction’s principle, produced by high-power electrical products, such as motor type, compressors, relays, fluorescent lamps, electric stove, refrigerator, air conditioner, energy saving lamps, pumps, etc. These products’power are far more than the rated power (about 3-7 times) when start. So only pure sine wave inverter is available to them.
