KOSUN pure sine wave 3000w inverter with ATS function 16ms transfer to the inverter for uninterrupted operation if the AC mains power shut off in a sudden.KOSUN inverter is reasonable factory price and stable quality win a good market share with OEM,ODM produce,welcome to keep in touch with KOSUN for the power inverter details.

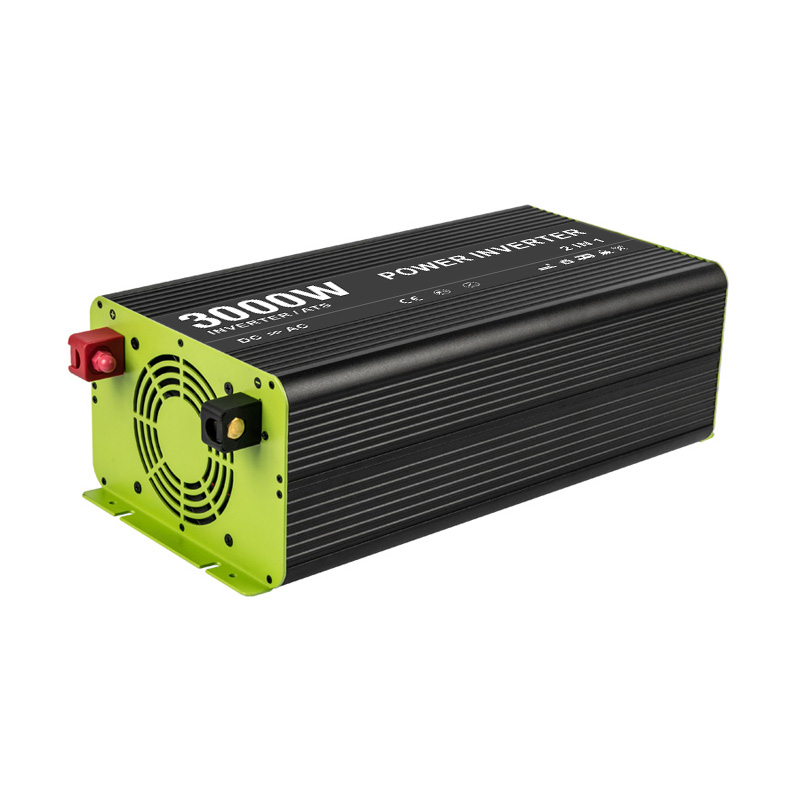

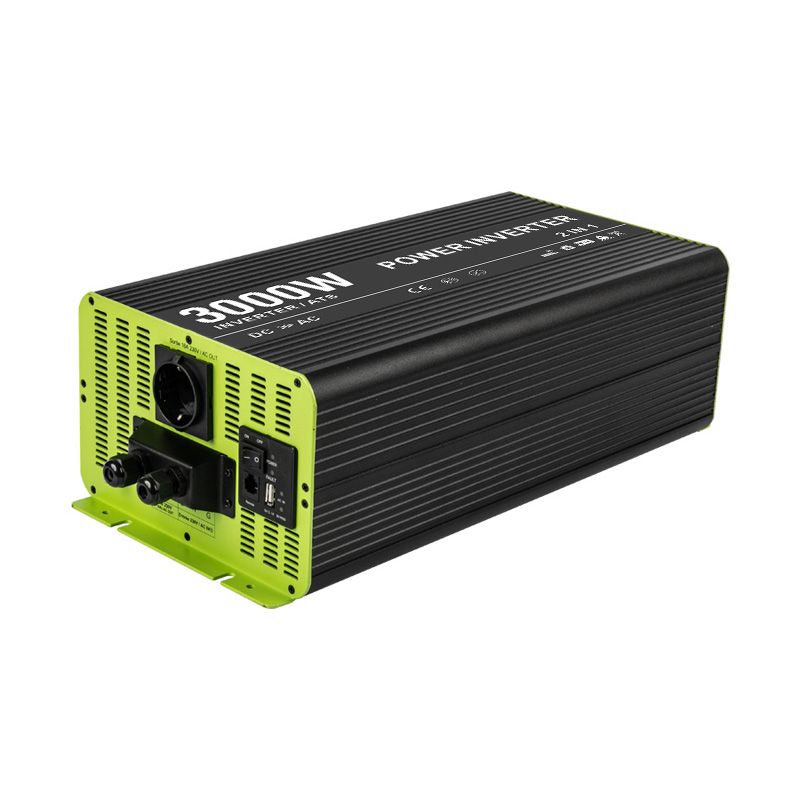

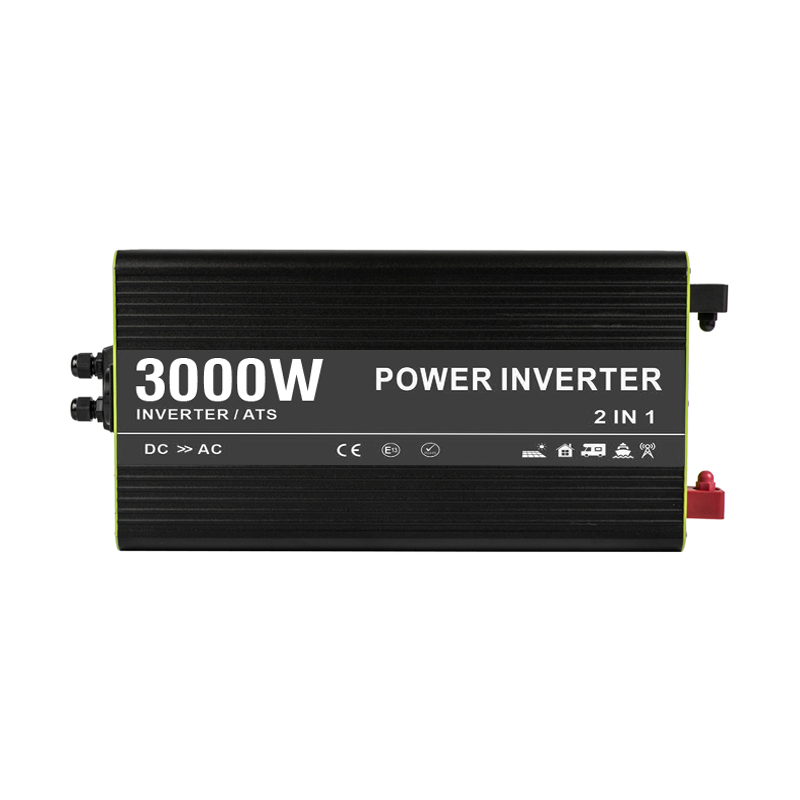

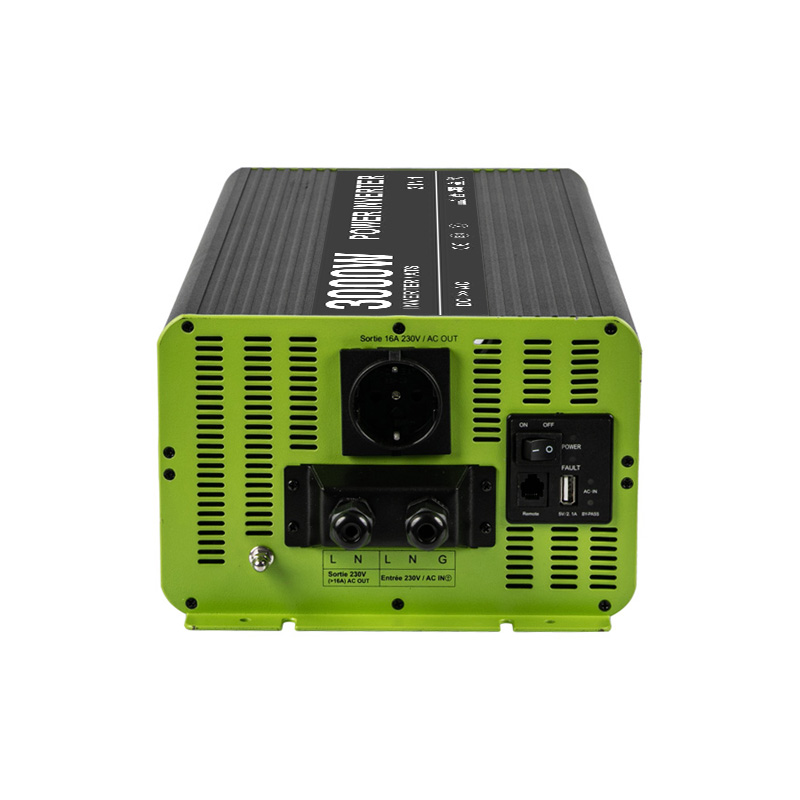

High frequency pure sine wave power inverter 3000w inverter with ATS function paint with variety colors such as blue/black/yellow/green/orange/silver for the case and the plates with OEM/ODM.The single phase dc to ac 3000w inverter match with aluminium shell for the durable and cooling functions. Continue 3000w power loading and peak power 6000w with soft start features which effectively reduce high starting inrush current drawn by AC loads.The auto transfer in the battery and AC main power keep the electric appliances regular operation.KOSUN inverters sale on the global market over 10 years which built in 2011 and established various types of advanced auto-machine for the assembly working line and the vibration test,high & low temperature alternating test,salt spray test etc for more reliable quality converters,the inverter apply for the RV,electronic vehicles,house application,camping power supply,emergency energy supply,outdoor power usage etc which make the people have a broaden choice for the off grid solar system.
Product parameter(Specification) of the 3000w inverter with ATS transformer
|
Pure Sine Wave Inverter With ATS Function |
|||||||
|
★★★★★ Highly recommended products |
|||||||
|
|
■ Pure sine wave output(THD<3%); |
||||||
|
MODEL |
|
RST3000P-112 |
RST3000P-124 |
RST3000P-148 |
RST3000P-212 |
RST3000P-224 |
RST3000P-248 |
|
OUTPUT |
RATED POWER |
3000W |
|||||
|
SURGE POWER |
6000W |
||||||
|
AC VOLTAGE |
Factory setting set at 100V/110V/120V AC |
Factory setting set at 220V/230V/240V AC |
|||||
|
FREQUENCY |
50Hz/60Hz optional |
||||||
|
WAVE FORM |
Ture sine wave(THD<3%) at rated input voltage |
||||||
|
AC REGULATION |
±10% |
||||||
|
STANDARD RECEPTACLES |
Schuko/UK/Australia/Universal/USA/France/JP/Brazile |
||||||
|
FRONT PANEL INDICATOR |
Operation and fault status |
||||||
|
INPUT |
BAT.VOLTAGE |
12V |
24V |
48V |
12v |
24V |
48V |
|
VOLTAGE RANGE |
9.8-16.2VDC |
19.7-32.3VDC |
39.5-63.5VDC |
9.8-16.2VDC |
19.7-32.3VDC |
39.5-63.5VDC |
|
|
DC CURRENT |
300A |
150A |
75A |
300A |
150A |
75A |
|
|
NO LOAD CURRENT DRAW |
<1.3A |
<1.18A |
<0.97A |
<1.3A |
<1.18A |
<0.97A |
|
|
EFFICIENCY |
89% |
>90% |
92% |
88% |
90% |
91%% |
|
|
BATTERY TYPES |
Recommend use Open & sealed lead acid battery |
||||||
|
BATTERY INPUT PROTECTION |
BAT.LOW ALARM |
10.5±0.2V |
21±0.3V |
42±0.5V |
10.5±0.2V |
21±0.3V |
42±0.5V |
|
BAT.LOW SHUTDOWN |
10.2±0.2V |
20±0.3V |
40±0.5V |
10.2±0.2V |
20±0.3V |
40±0.5V |
|
|
BAT.OVER SHUTDOWN |
16±0.2V |
32±0.3V |
64±0.5V |
16±0.2V |
32±0.3V |
64±0.5V |
|
|
REVERSE POLARITY |
yes |
||||||
|
by pass |
ATS transfer |
The power switch to battery within 2s if the city power cut off. |
|||||
|
OUTPUT PROTECTION |
OVER TEMPERATURE |
≥45ºC or ≥60% rated power, cooling fan open;≥70ºC,Shut off. |
|||||
|
Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor |
|||||||
|
OUTPUT SHORT |
Protection type:Shut down o/p voltage;re-power on to recover |
||||||
|
OVER LOAD |
100%-120% rated load for 10 sec. |
||||||
|
Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor |
|||||||
|
ENVIRONMENT |
WORKING TEMP. |
-15℃～+40℃@100% load;60℃ @50% load |
|||||
|
WORKING HUMIDITY |
20%90% RH non-condensing |
||||||
|
STORAGE TEMP. |
-30℃～+70℃/-22℉～+158℉ |
||||||
|
STORAGE HUMIDITY |
10%95% RH non-condensing |
||||||
|
SAFETY |
CE |
Compliance to EN55032 |
|||||
|
LVD |
Compliance to EN60950-1 |
||||||
|
ROHS |
Compliance to EN50581 |
||||||
|
E-MARK |
E13 |
||||||
|
OTHERS |
ISO9001/IATF16949/BSCI |
||||||
|
UL test |
Test report No.C 8 1 1 5 2072 ; UL order No.1 3 5 8 2 0 0 7 |
||||||
|
REACH |
No.:1907/2006 |
||||||
|
certificate of registration |
IATF 16949:2016 |
111458/A/0001/SM/En |
|||||
|
OTHERS |
USB port |
5V/2.1A |
|||||
|
DIMENSION L*W*H (mm) |
410*220*150 |
||||||
|
PACKING(cm) |
55*34*25;1pc/CTN,11KG |
||||||
Product feature and application of the 3000w pure sine wave inverter with ATS function
①. Fuse：built-in
②. 1.5 times rated power for 10s,2 times for 2s(inverter)
③. USB:5V/2.1A
④. Plastic terminal TP-56 for more safety operation
⑤. Protection:LED indicator & Audible alarm
⑥. Input voltage range:‐15%~+25%
⑦. Output voltage regulation:±10%
⑧. auto-transfer switch by pass function
⑨. .protections:Over temperature/over load/short circuit/reverse polarity protection/earth leakage;
⑩. Applications:electrical applications like TV/microwave/washing-machine /air-conditioner /hair dryer /oven;electrical vehicles,truck,yacht,outside portable power source for lighting,charging etc.
Product Qualification of the 3000w pure sine wave inverter with ATS Function
A. CE Compliance to EN55032
B. RoHS Compliance to EN50581
C. LVD Compliance to EN60950-1
D. E-Mark E13
E. IATF 16969
F. REACH/UL/TUV report
Deliver,Shipping And Serving of the 3000w pure sine wave inverter with ATS function
It is a flexible transportation for the power inverter to clients such as express/train/ocean/air etc which could meet different customers choice.The factory manage the materials in advance after confirming the order,and then,produce the cargoes which save more time for the whole process.3000w pure sine wave inverter with ATS function pack with customized color box or neutral packages according to the customer demands.
FAQ
A. What character of your company?
KOSUN are one of professional manufacture with two factories built in 2011 which equip with advanced auto-machine and modern assembly line for the standard process of produce,the products are more stable for the long time operation.The main products include pure sine wave inverter,inverter with charger,modified sine wave inverter,battery charger and power station etc,thus,welcome to negotiate with us for more information you want.
B. Do you accept OEM produce?
Yes,of course. We would like to provide you the OEM,ODM produce for popular market which will improve the market share on your region.
C. Whether you accept small order?
Yes,small trial order is welcomed,contact with us for more information you want,we are glad to offer you satisfied service;
D. How about the warranty?
Warranty is 18 months for all goods.
