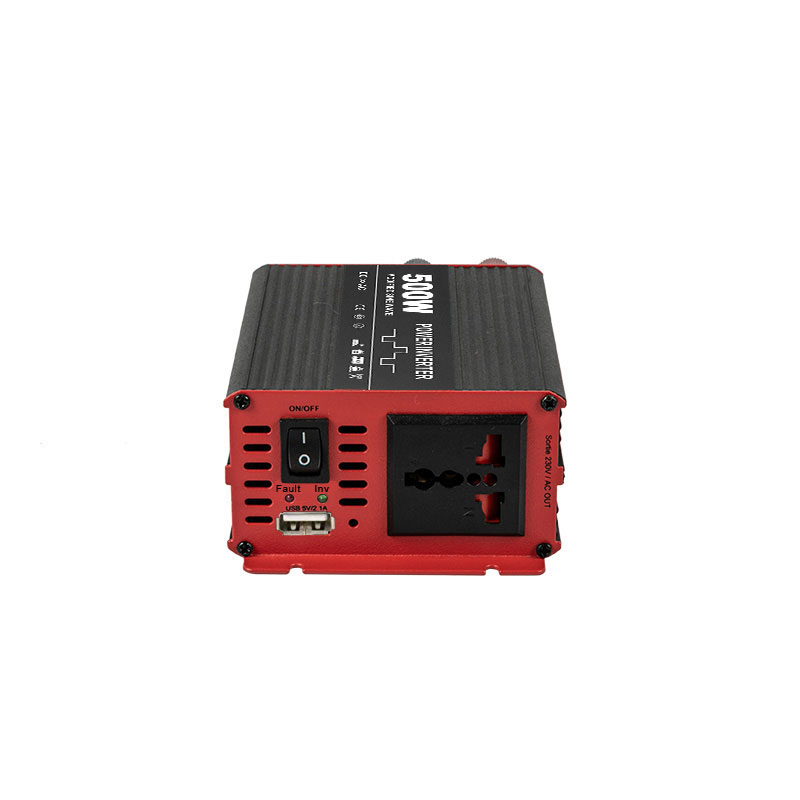

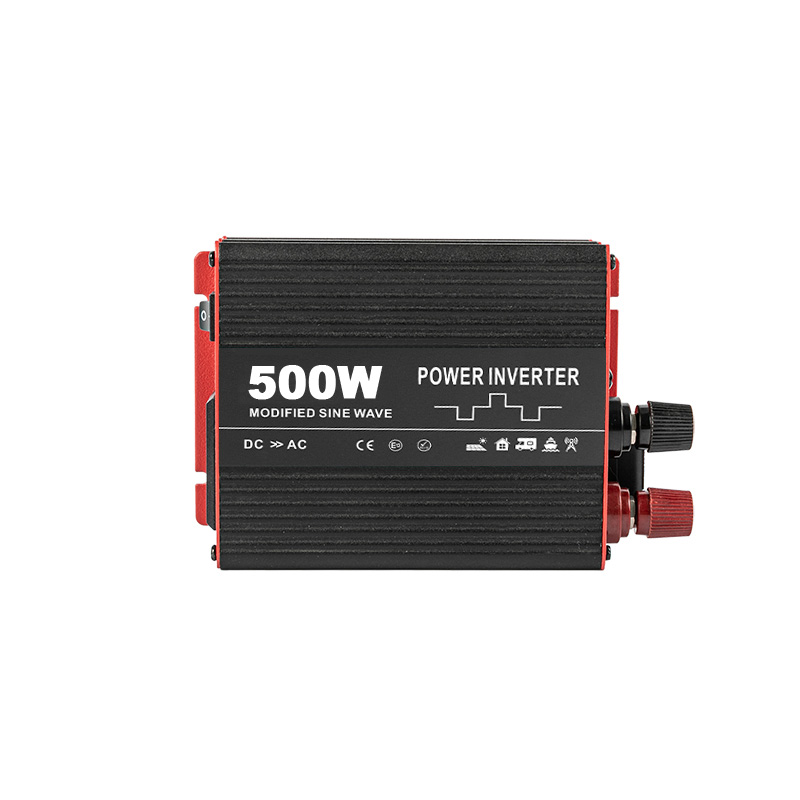

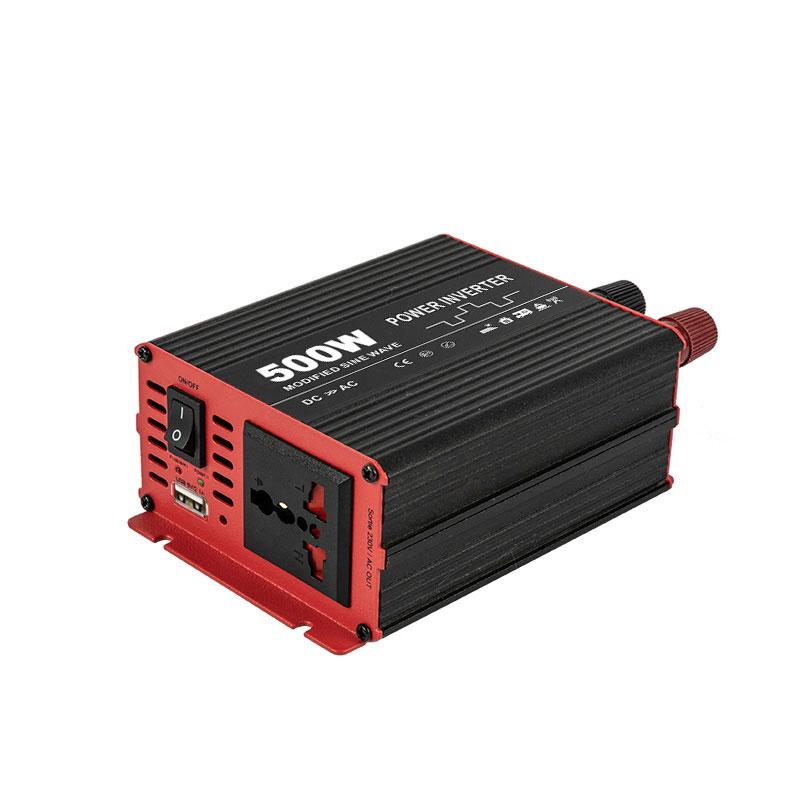

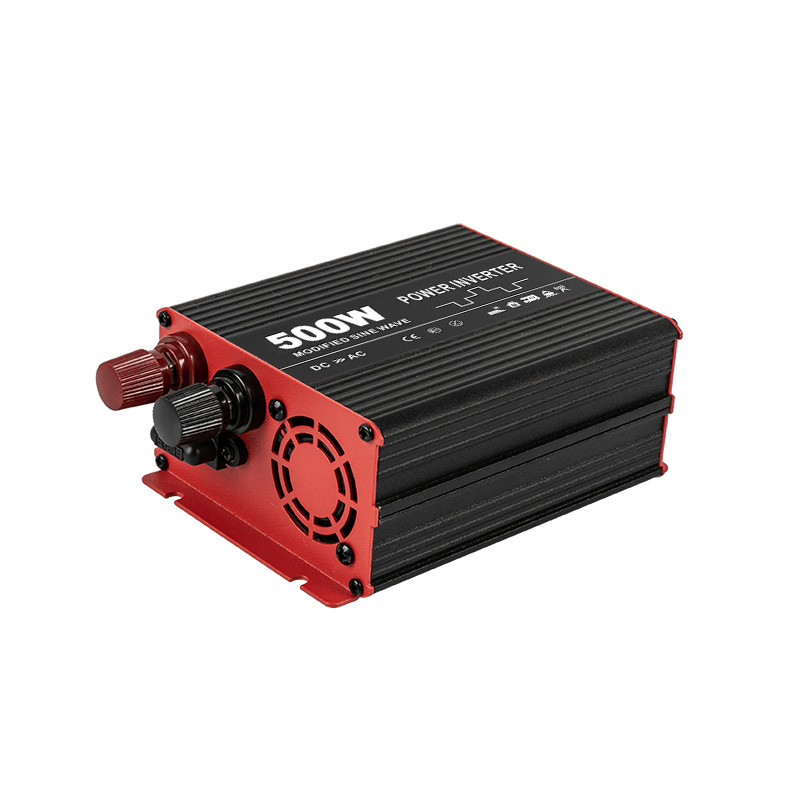

KOSUN cheaper price 500w power inverter has the CE certificate from TUV which passed the EN55032 and EN55035 for the global market.The modified sine wave inverter 500w is engineered with variety advantages:aluminium shell for more durable and cooling function,small dimension for portable carry,good quality materials ensure the high efficiency feature.Thus,KOSUN could help you do OEM ODM for the stronger market demand with special requirement.
DC to AC 500w power inverter set continuous power 500w and peak power 1000w with soft start,the inversor 500w should install in a location with dry & cool & ventilated &safe¬ in a dusty environments & close to batteries for the stable and long-term operation with high efficiency function.
Product parameter(Specification) of the 500w power inverter
|
Modified Sine Wave Inverter |
|||||||
|
|
■ Modified sine wave output; |
||||||
|
MODEL |
|
KS500M-112 |
KS500M-124 |
KS500M-148 |
KS500M-212 |
KS500M-224 |
KS500M-248 |
|
OUTPUT |
RATED POWER |
500W |
|||||
|
SURGE POWER |
1000W |
||||||
|
AC VOLTAGE |
Factory setting set at 100V/110V/120V AC |
Factory setting set at 220V/230V/240V AC |
|||||
|
FREQUENCY |
50Hz/60Hz optional |
||||||
|
WAVE FORM |
Modified sine wave |
||||||
|
AC REGULATION |
±10% |
||||||
|
STANDARD RECEPTACLES |
Schuko/UK/Australia/Universal/USA/France/JP/Brazile |
||||||
|
FRONT PANEL INDICATOR |
Operation and fault status |
||||||
|
INPUT |
BAT.VOLTAGE |
12V |
24V |
48V |
12v |
24V |
48V |
|
VOLTAGE RANGE |
9.7-16.4VDC |
19.4-32.8VDC |
38.8-65.6VDC |
9.7-16.4VDC |
19.4-32.8VDC |
38.8-65.6VDC |
|
|
DC CURRENT |
50A |
25A |
12.5A |
50A |
25A |
12.5A |
|
|
NO LOAD CURRENT DRAW |
<0.25A |
<0.21A |
<0.19A |
<0.25A |
<0.21A |
<0.19A |
|
|
EFFICIENCY |
89% |
>90% |
92% |
88% |
90% |
91%% |
|
|
BATTERY TYPES |
Recommend use Open & sealed lead acid battery |
||||||
|
BATTERY INPUT PROTECTION |
BAT.LOW ALARM |
10.8±0.3V |
21.6±0.6V |
43.2±1.2V |
10.8±0.3V |
21.6±0.6V |
43.2±1.2V |
|
BAT.LOW SHUTDOWN |
10±0.3V |
20±0.6V |
40±1.2V |
10±0.3V |
20±0.6V |
40±1.2V |
|
|
BAT.OVER SHUTDOWN |
16±0.4V |
32±0.8V |
64±1.6V |
16±0.4V |
32±0.8V |
64±1.6V |
|
|
REVERSE POLARITY |
yes |
||||||
|
OUTPUT PROTECTION |
OVER TEMPERATURE |
≥45ºC or ≥60% rated power, cooling fan open;≥70ºC,Shut off. |
|||||
|
Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor |
|||||||
|
OUTPUT SHORT |
Protection type:Shut down o/p voltage;re-power on to recover |
||||||
|
OVER LOAD |
100%-120% rated load for 10 sec. |
||||||
|
Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor |
|||||||
|
ENVIRONMENT |
WORKING TEMP. |
-15℃～+40℃@100% load;60℃ @50% load |
|||||
|
WORKING HUMIDITY |
20%90% RH non-condensing |
||||||
|
STORAGE TEMP. |
-30℃～+70℃/-22℉～+158℉ |
||||||
|
STORAGE HUMIDITY |
10%95% RH non-condensing |
||||||
|
SAFETY |
CE |
Compliance to EN55032 |
|||||
|
LVD |
Compliance to EN60950-1 |
||||||
|
ROHS |
Compliance to EN50581 |
||||||
|
E-MARK |
E13 |
||||||
|
OTHERS |
ISO9001/IATF16949/BSCI |
||||||
|
UL test |
B08H52NN2M/ B08H54PCDT/ B08H4TMTJC/ B08H51DTM8 |
||||||
|
REACH |
No.:1907/2006 |
||||||
|
certificate of registration |
IATF 16949:2016 |
111458/A/0001/SM/En |
|||||
|
OTHERS |
USB port |
5V/2.1A |
|||||
|
DIMENSION L*W*H(mm) |
150*100*50 |
||||||
|
PACKING(cm) |
44*38*34 ;16pcs/CTN,18KG |
||||||
Product feature and application of the 500w power inverter
①. Fuse:built-out;
②. USB:5V/2.1A;
③. Modified sine wave output;
④. High reliability and high efficiency;
⑤. High load ability;
⑥. Temperature Controlled Cooling Fan;
⑦. Protection:Overload.Short Circuit,Reverse Polarity,Over/Under Input Voltage,Over Temperature;
⑧. LED Indicator light indicate inverter,fault mode;
⑨. CE/RoHS/E-Mark/ISO9001 approved.
Product Qualification of the 500w power inverter
A. CE Compliance to EN55032
B. TUV:AE50510687 0001
C. RoHS Compliance to EN50581
D. LVD Compliance to EN60950-1
E. E-Mark E13
F. IATF 16969
G. REACH/UL/TUV report
Deliver,Shipping And Serving of the 500w power inverter
It is a flexible transportation for the power inverter to clients such as express/train/ocean/air etc which could meet different customers choice.The factory manage the materials in advance after confirming the order,and then,produce the cargoes which save more time for the whole process.KOSUN inverter pack with customized color box or neutral packages according to the customer demands.
FAQ
A. What character of the manufacture?
KOSUN are one of professional manufacture with two factories built in 2011 which equip with advanced auto-machine and modern assembly line for the standard process of produce,the products are more stable for the long time operation.The main products include pure sine wave inverter,inverter with charger,modified sine wave inverter,battery charger and power station etc,thus,welcome to negotiate with us for more information you want.
B. Why your quotation is higher than other suppliers?
C. In domestic market, the high and low inverter brands are mixed together. There are many low-cost inverter is actually some assembled small unlicensed workshops, it crudely, to reduce costs and use of substandard components for assembly, there is a very big security risk! In order to protect the pro personal and property safety, please do not covet low price, be sure to choose a reliable inverter;
D. Is the output voltage of our inverter stable ?
E. Absolutely. Our inverter is designed with a good regulator circuit. You can even check it when measuring the true value by a multimeter. Actually the output voltage is quite stable;
F. What is a resistive load appliances?
G. Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescents, electric fans, video broadcast, small printers, electric mahjong machines, rice cookers etc. All belong to resistive loads. Our modified sine wave inverters can drive them successfully.
H. What is the inductive load appliances?
I. It refers to the application of electromagnetic induction’s principle, produced by high-power electrical products, such as motor type, compressors, relays, fluorescent lamps, electric stove, refrigerator, air conditioner, energy saving lamps, pumps, etc. These products’power are far more than the rated power (about 3-7 times) when start. So only pure sine wave inverter is available to them.
The advantages to choose our team:
1. Our sales staff has extensive sales experience through continuous training and practice which they have the ability to efficiency cooperate development between company and clients and provide satisfied service to customers;
2. The company buy modern equipment for automated production line;
3. Training professional technical staff is essential process to improve the quality of produce;
4. Meeting before order production determine relative details to reduce error output;
5. Strict quality control(incoming inspection/semi-finished product inspection/finished product test/several times full test on-line/sampling test before shipment);
6. OEM/ODM accept by workshop;
7. Good after-sales service for long-term development.
