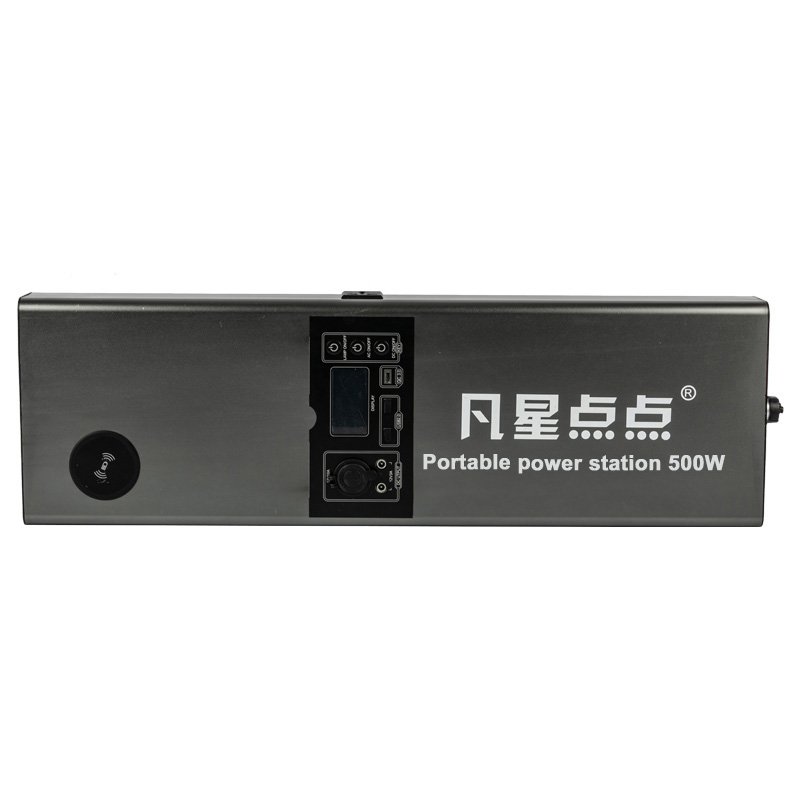

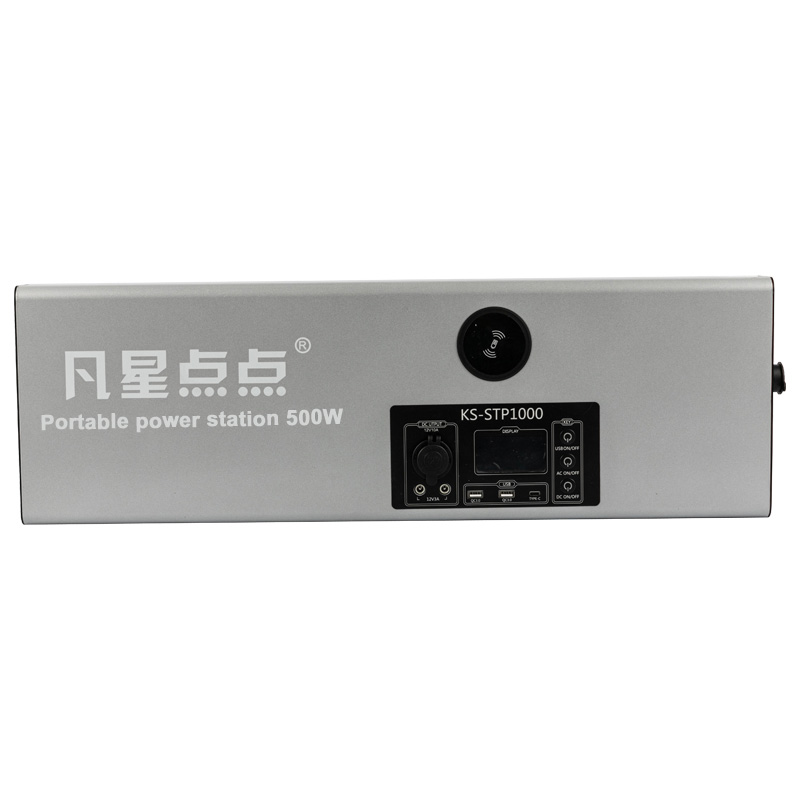

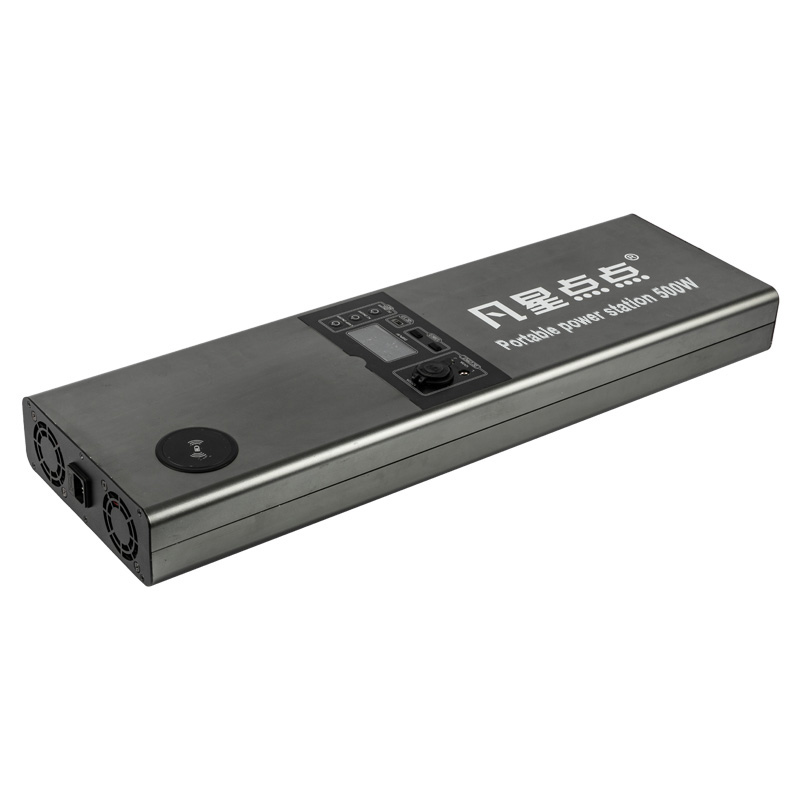

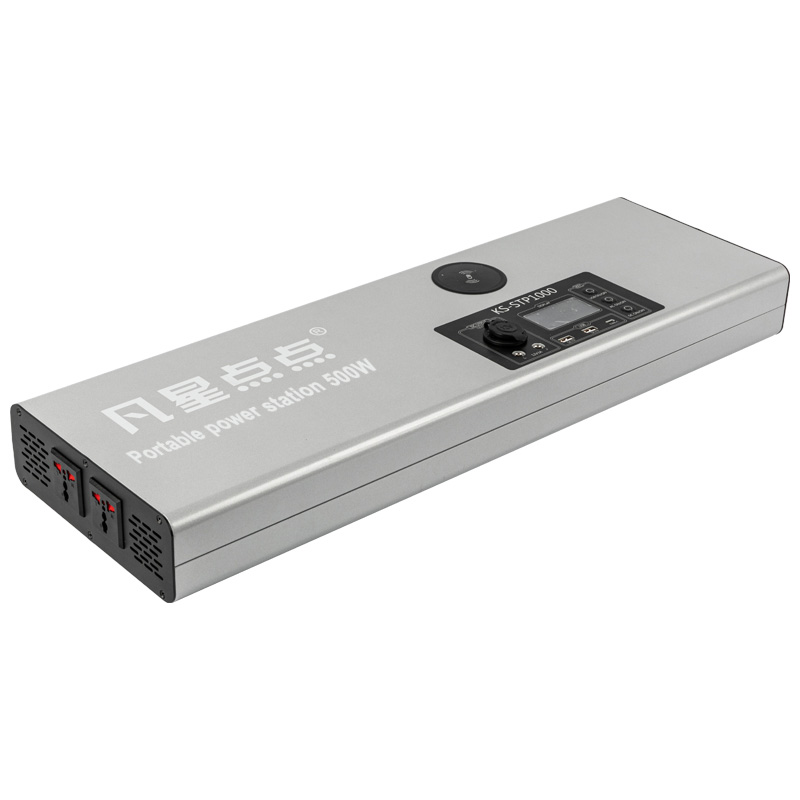

KOSUN 500w vehicle power station is the integrity of pure sine wave inverter 500w(peak power 1000w),battery charger,solar controller.The reliable quality 500w power station supplied by the KOSUN factory which built over 10 years and well-equipped facilities.The new design power station 500w have various application scenarios:RV travel,outdoor and camping,car charging,home emergency,picnic.
KOSUN 500w vehicle power station design with multiple output: the DC output,AC output,USB port,Type C,QC,Cigarette charging,spotlight,solar charging.It uses for various functions reach the goals for the different people.The portable power station is hot sale on the market on the basis of reliable quality and continue power supply for the wide range of usage in the work and life.
Product Parameter (Specification) of the 500w vehicle power station
Ningbo Kosun New Energy Co.,Ltd
Address: No.17,Xingye Road,Yuyao City, Ningbo Zhejiang Province,China 315400
Product Specification
|
Power station configuration table |
|
|
Inverter |
Rated power 500W,peak power 1000w,220v output |
|
Battery type & capacity |
Lithium battery packs 132000mAh |
|
Battery charger |
Max. Charging power 200W |
|
LED light |
5W spotlight*1 4W working lamp*2 |
|
USB port |
USB2.0*2 QC3.0*1 |
|
DC output |
adaptor connector DC 12V3A *2 cigarette port DC 12V10A *1 |
|
LCD show |
Voltage,power,the battery capacity |
Specification
|
portable power station |
||
|
Model |
KSPB500 |
|
|
Inverter |
Output power |
PURE SINE WAVE rated power 500w,peak power 1000w,universal sockets 220V*2 |
|
Efficiency |
≥90% |
|
|
No load current |
≤0.36A |
|
|
DC output |
Type C |
30W |
|
QC3.0 |
18W MAX*2 |
|
|
DC 12V |
12V3A*2 12V10A*1 |
|
|
Battery charger |
Charging power |
200W，165-265V,40~60Hz |
|
Charging efficiency |
≥85% |
|
|
Charging time |
90Mins |
|
|
Battery type |
Cell material |
Ternary lithium battery |
|
Battery capacity |
132000mAh |
|
|
Cycle life |
5000 cycles |
|
|
Protections |
Over/low temp. Protection,over charge/discharge protection,over load protection,short-circuit protection,over current protection |
|
|
Working Temp. |
-15℃＋40℃@100 load;+60℃@50% load |
|
|
Storage temp. |
-30℃＋70℃ |
|
|
Operating humidity |
0~98%Rh |
|
|
Storage humidity |
0~90%Rh |
|
|
Cooling method |
Intelligent temp.controlled air cooling |
|
|
Over heat protection |
70℃±5℃ |
|
|
Shell material |
Aluminum-magnesium alloy |
|
|
Color of shell |
Black,silver |
|
|
Packaging Information |
unit size(mm) |
300*260*150mm |
|
Unit N.W.(KG) |
6.5Kg |
|
|
C/T size |
690*220*75mm |
|
|
Q’ty/CTN |
1sets/ctn |
|
|
G.W.(GK)/CTN |
7.5Kg |
|
Product Feature And Application of the 500w portable power station
①.1.5 times rated power for 10s,2 times for 2s;
②.digital display for current and voltage
③.Fuse:built-in;
④.stable operating AC output with various types sockets: universal, UK, US, Germany, French, Australia, Argentina etc ;
⑤.cooling fan:temperature and load controlled;
⑥.USB:5V/2.1A;Type C,QC 3.0,Cigarette for vehicle charging;
⑦.protections:Over temperature/over load/short circuit/reverse polarity protection/earth leakage,anti-radiation,anti-interference;
⑧.Applications:electrical applications like TV/microwave/washing-machine /air-conditioner /hair dryer /oven;electrical vehicles,truck,yacht,outside portable power source for lighting,charging etc.
Product Qualification of the KOSUN 500w portable power station
A. CE
B. RoHS
C. LVD
D. IATF 16969
E. Alibaba SGS assessment of report
F. each unit has a specific test report during whole process of test
E.every orders do the casual inspections and do the report during the produce and before shipment.
Deliver,Shipping And Serving of the 500w portable power station
The factory will arrange the order after confirming the goods with customers,500w Kosun pure sine wave power inverter pack with customized color box or neutral packages for various orders.
Customers will choose multi methods of transportation such as express DHL/TNT/UPS/FEDEX, train,ocean and so on.
We will design,research with more professional service to solve the issue from clients OEM ODM for the power converter to clients with 18 months warranty.
FAQ
A. What character of the manufacture?
KOSUN are one of professional manufacture with two factories built in 2011 which equip with advanced auto-machine and modern assembly line for the standard process of produce,the products are more stable for the long time operation.The main products include pure sine wave inverter,inverter with charger,modified sine wave inverter,battery charger and power station etc,thus,welcome to negotiate with us for more information you want.
B. Do you accept OEM produce?
Yes,of course.KOSUN accept the OEM ODM for clients to improve the market share and ideal benefits for the clients in local market.
C. Whether KOSUN accept small order?
Yes,small trial order,bulk order all supply to you according to your real requirement.Please contact with us by free for more information you want,we are glad to offer you satisfied service;
D. How about the warranty?
Warranty is 18 months for all goods.
