You can rest assured to buy Remote Control from our factory and we will offer you the best after-sale service and timely delivery. Power ON/OFF switch is to turn the inverter on or off.

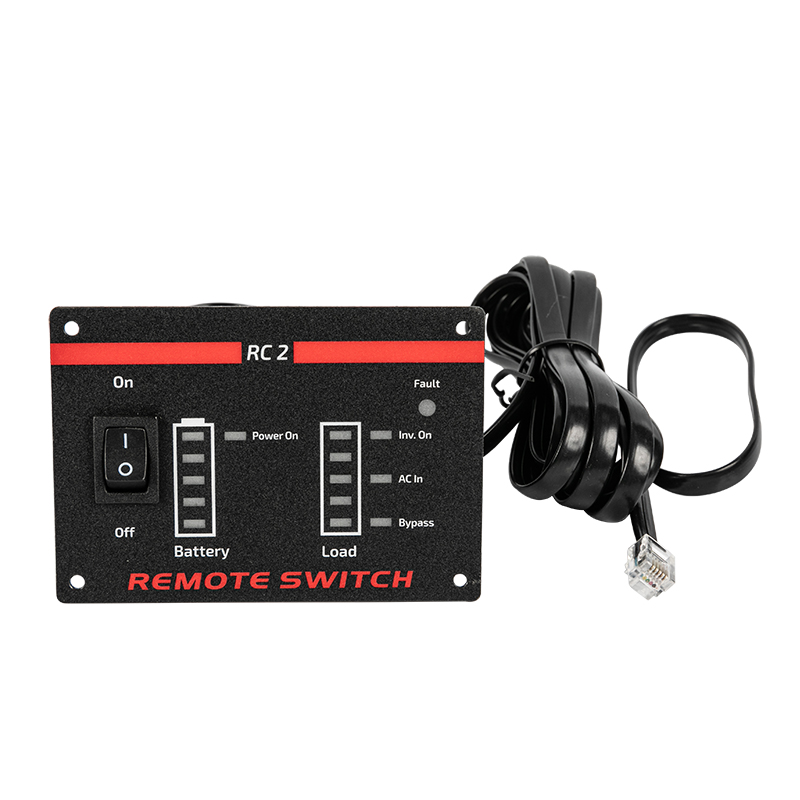

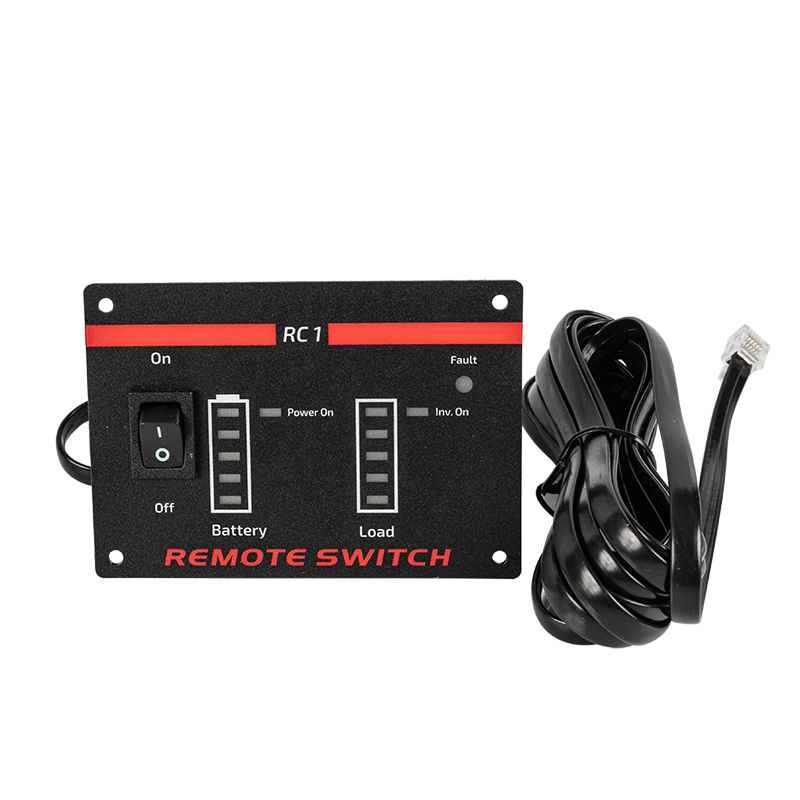

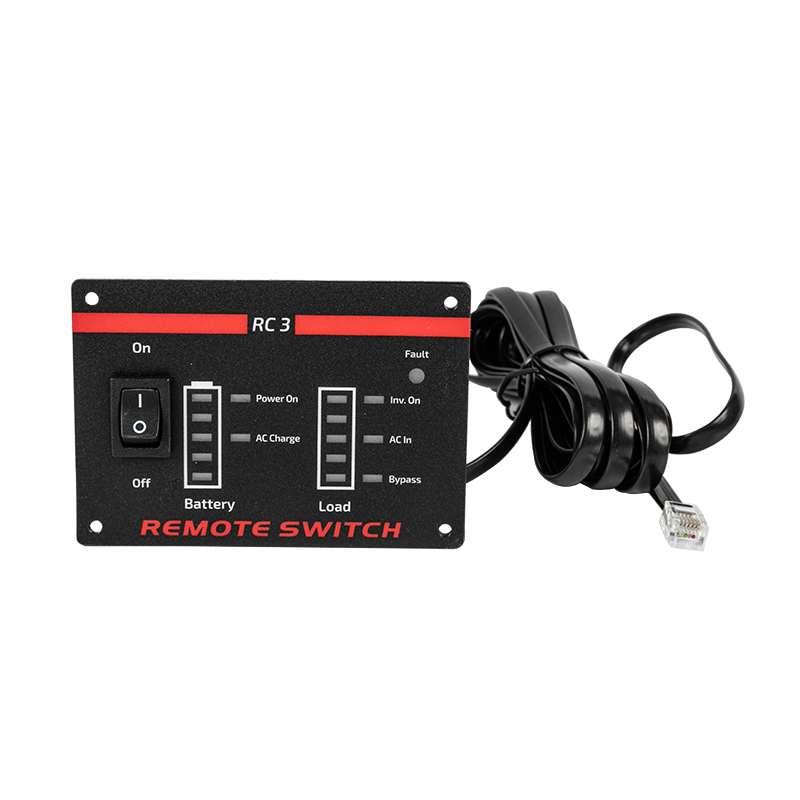

Remote control switch
Power ON/OFF switch
Power ON/OFF switch is to turn the inverter on or off.
Battery Capacity/Load Voltage indicator
Load:Show the approximate connect equipment load level.
Five Levels---20%,40%,60%,80%,100%.
Battery:Show the battery residual capacity.
Five Levels---20%,40%,60%,80%,100%.
AC In Indicator
AC In: after correct connect the AC mains,the light will turn on.
Bypass: Under Bypass function,the light turn on.
Charge In: Under charge function,the light turn on.
Fault:Turns red show fault,refer to troubleshooting of inverter manual.Connecting the communications cable.
The communications cable is 3 meters,6-conductor cable(wired like a normal telephone-type cable). This cable is connected to the RJ11 jack on the rear of the remote control and to the remote port located on the rear of the inverter.
Notice:
Inverter’s ON/OFF switch and remote control’s ON/OFF switch is in parallel. To use this remote control,must turn the inverter’s ON/OFF switch to OFF,and vice versa.
